FWIW: Hyper is among several that are bandwidth-limited by the 10-gigabit Ethernet in our (TechEmpower) Plaintext test. We hope to increase the available network bandwidth in the future to allow these to higher-performance platforms an opportunity to really show off.

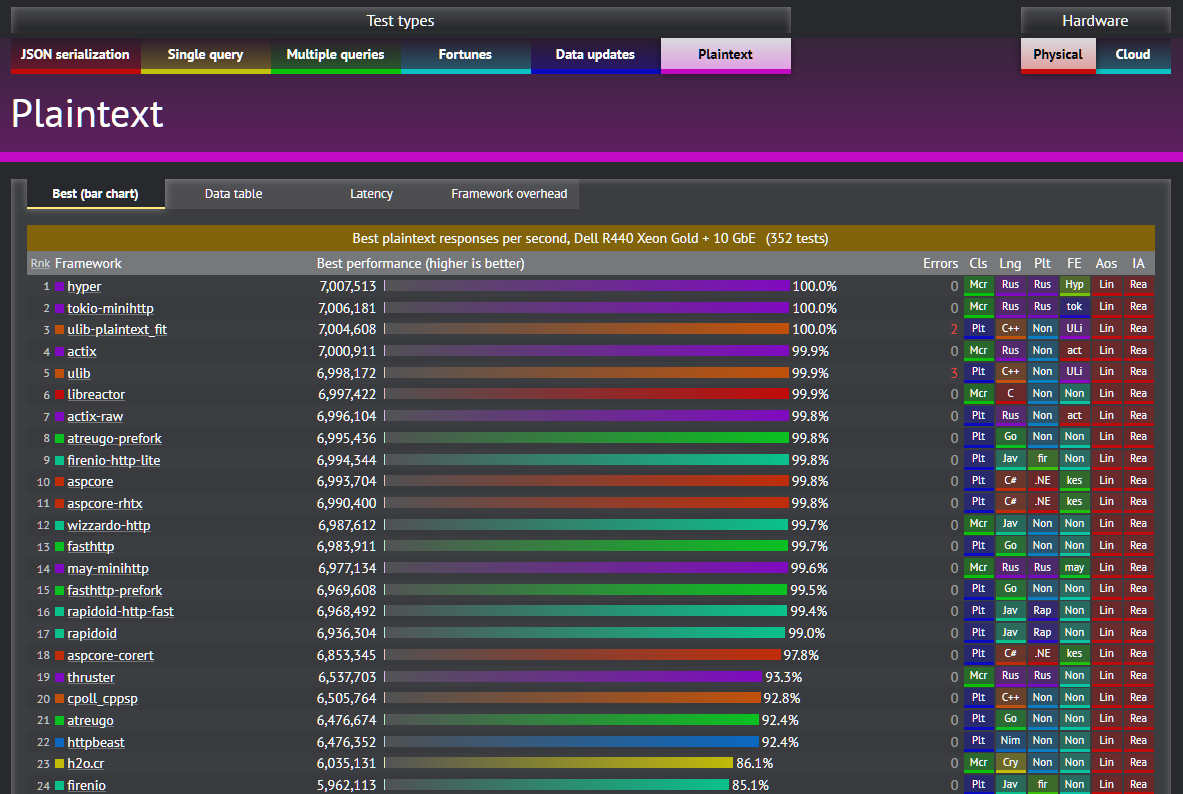

In the Round 18 Plaintext results that the OP linked to [1], you can see a pretty clear convergence at ~7 million requests per second, which I've screen captured in [2].
How can you tell how each test is bottlenecked? Is it something as simple as saying that if the processor isn't at 100% utilization then the bottleneck is somewhere else?
I read a long time ago about how the linux kernel handled incoming packets in a really inefficient way that led to the network stack being the bottleneck in high performance applications. Is that no longer true?
I'd love to learn more about this whole area if anyone has any good links.
It's generally possible to go 3x-10x faster than Linux if you make some tradeoffs like dedicating cores to polling. See https://www.usenix.org/node/186147 and https://wiki.fd.io/view/VPP/What_is_VPP%3F Moore's Law excuses a lot of sins, however, so on the latest servers Linux is probably adequate up to 100 Gbps for most use cases.
So the theoretical optimum is 14.88 Mpps (millions of packets per second). That's with the smallest possible payload. You need to divide that by two because the test involves both a request and a response, which gives you 7.44 million requests per second as the theoretical maximum.
The best tests max out around 7 M rps. This gives an implied overhead of about 6%, which corresponds to the HTTP overhead.
You're right.
But I assume the benchmark basically implements a ping-pong game instead of DoSing the server to see how many requests actually survive (I could be wrong).
The benchmarks test something very specific: A ton of tiny requests on keepalive connections. Those tiny requests are not very IO efficient, and therefore 10GBit/s is already a lot.
However if you would add a benchmarks to download 10MB static files the network utilization would likely go a lot up - even if the same frameworks are used.
FWIW: Hyper is among several that are bandwidth-limited by the 10-gigabit Ethernet in our (TechEmpower) Plaintext test. We hope to increase the available network bandwidth in the future to allow these to higher-performance platforms an opportunity to really show off.
